Descripción

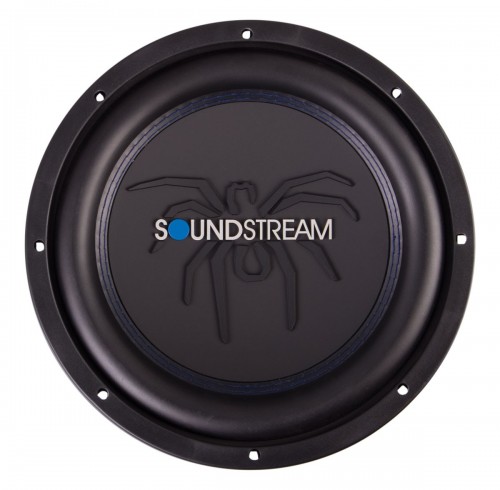

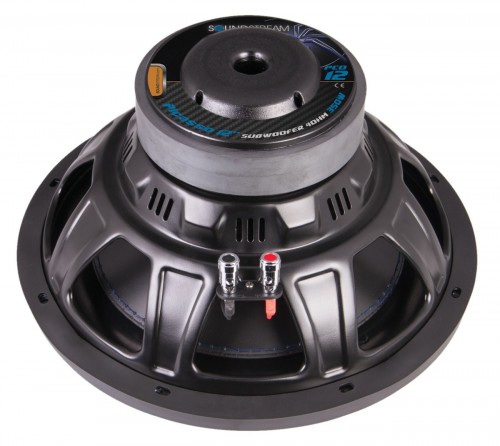

Every once in a while, you run across something that is simple and gets the job done. Picasso subwoofers are engineered to perform, without extravagant cosmetic do-dads other manufacturers add to compensate for their shortcomings. Performance doesn’t have to breaking the bank…
- Injection Molded Polypropylene Cone
- Overcast Stitched Cones
- NBR Rubber Surround
- 2″ SVC 4-Ohm Voice Coil
- Embossed Dust Cap
- Frame Voice Coil Venting
- Vented T-Yoke & Back Plate
| SPECIFICATIONS | PCO.12 |
|---|---|
| RMS Power (watts) | 350 |
| Efficiency (1w/1m) | 88.41 |
| Voice Coil Configuration | 2" SVC 4Ω |
| Mounting Depth | 6.00" |
| Optimum Sealed ft3 | 1 |
| Optimum Ported ft3 | 1.75 |
| Soundstream | PCO-12 |
|---|---|
| Imp. (Ohm) | 4 |
| Re | 4.0953 |
| Fs (Hz) | 24.76 |
| Qes | 0.5749 |
| Qms | 3.9285 |
| Qts | 0.5015 |
| Le (mH) | 2.5441 |
| Diam | 12 |
| Vas (L) | 175.5596 |
| BL | 14.0423 |
| Mms (g) | 177.8864 |
| Sen (db) | 88.41 |
| RMS | 350 |
| Mounting D | 6" |
| CutOut Diam | 11.5 |
| Sealed Opt | 1.25 ^2ft |
| Ported Opt | 1.75 ^2ft |
| Port WxL | 5"x4" |
| F3 (Hz) | 55 |
