TN2.600D
Tarantula Nano 600w Class D 2 Channel Amplifier
| RMS Power @ 4Ω | 200 x 2 |
| RMS Power @ 2Ω | 300 x 2 |
| RMS Power @ 4Ω Bridged | 600 x 1 |
- Descripción
- Specifications
- Support
Descripción
We’re in a time where small is “in”. Smaller, more economical vehicles are more and more desirable. But that doesn’t mean you have to sacrifice big power for your system. The new Tarantula NANO amplifiers pack huge amounts of power into small chassis thanks to efficient Full-Range Class D topology and SMT technology. Complimented with every possible preamp adjustment, the NANO amplifiers leave nothing to be desired…
- Class D Full Range SMT Circuitry
- Double Sided Composite Epoxy PCB
- 2-Ohm Stereo, 4-Ohm Bridged Multi-Channel
- Three-Way Protection Circuitry
- Delayed On/Off Circuit
- Tri-Mode Capable

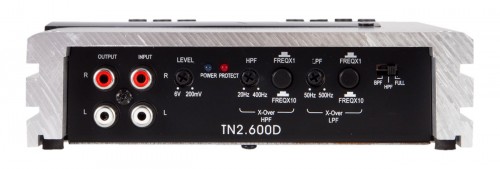

- Variable 12dB High, Low, & Subsonic Crossovers

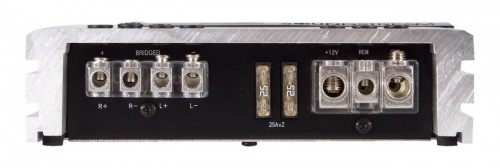

- Direct Wire 8ga. Power & Speaker Terminals
- 0ga Reducer Terminal Included
| SPECIFICATIONS | |
|---|---|
| RMS Power @ 4Ω | 200 x 2 |
| RMS Power @ 2Ω | 300 x 2 |
| RMS Power @ 4Ω Bridged | 600 x 1 |
| Low Pass Crossover | 50Hz-5kHz 12dB |
| High Pass Crossover | 20Hz-4kHz 12dB |
| Input Level Sensitivity | 200mV-6V |
| Idle Current Draw | 0.93A |
| Damping Factor | 114 |
| Input Impedance | 20k Ohm |
| Signal-to-Noise Ratio | 94dB |
| Fuse Rating | 25A x 2 |
| Dimensions (6.875"w x 1.75"h) |
6.875" |
